2.七段显示器

一、功能以及原理

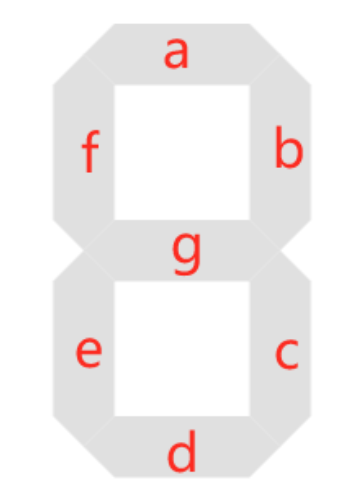

原理：七段显示器是由七个 LED 灯所组成，控制不同的 LED 灯亮灭以显示不同的数字

二、引脚介绍以及对应开发板可用引脚

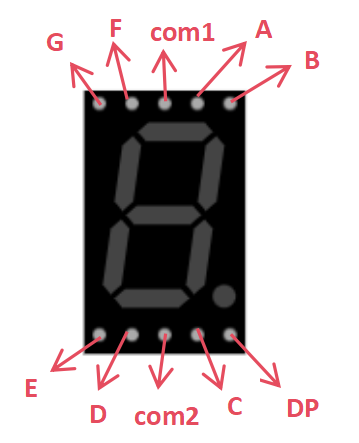

七段显示器引脚：

com1 与 com2：LED 灯的共阴极，通过电阻连接到 Arduino 板的 GND

G、F、A、B、E、D、C、DP:LED 灯的正极，连接 Arduino 板的数字引脚（0~13）

三、代码控制

定义每个 LED 灯正极连接的数字引脚
初始化每个 LED 灯为熄灭状态
根据用户输入的数字，让对应的 LED 灯亮灭以显示数字

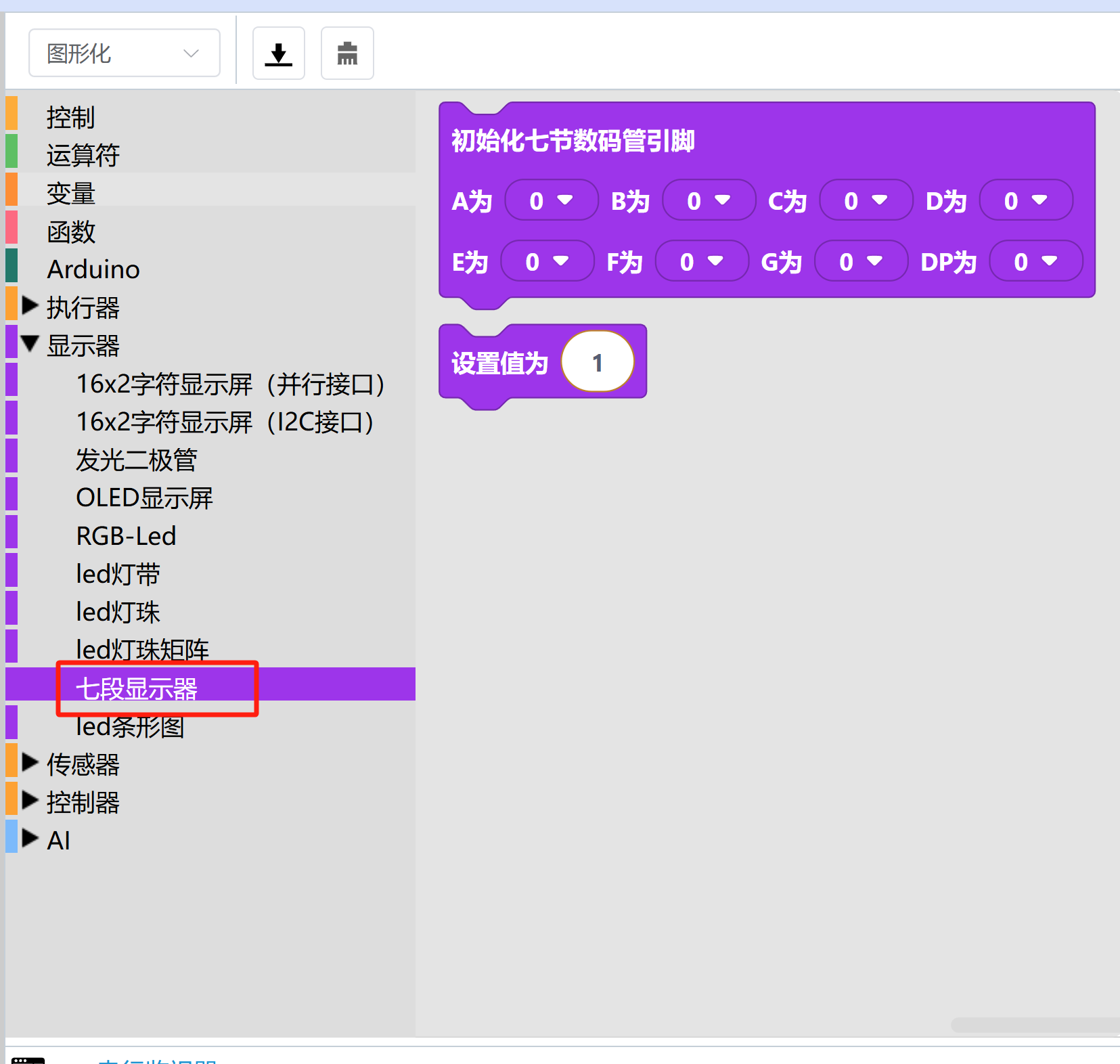

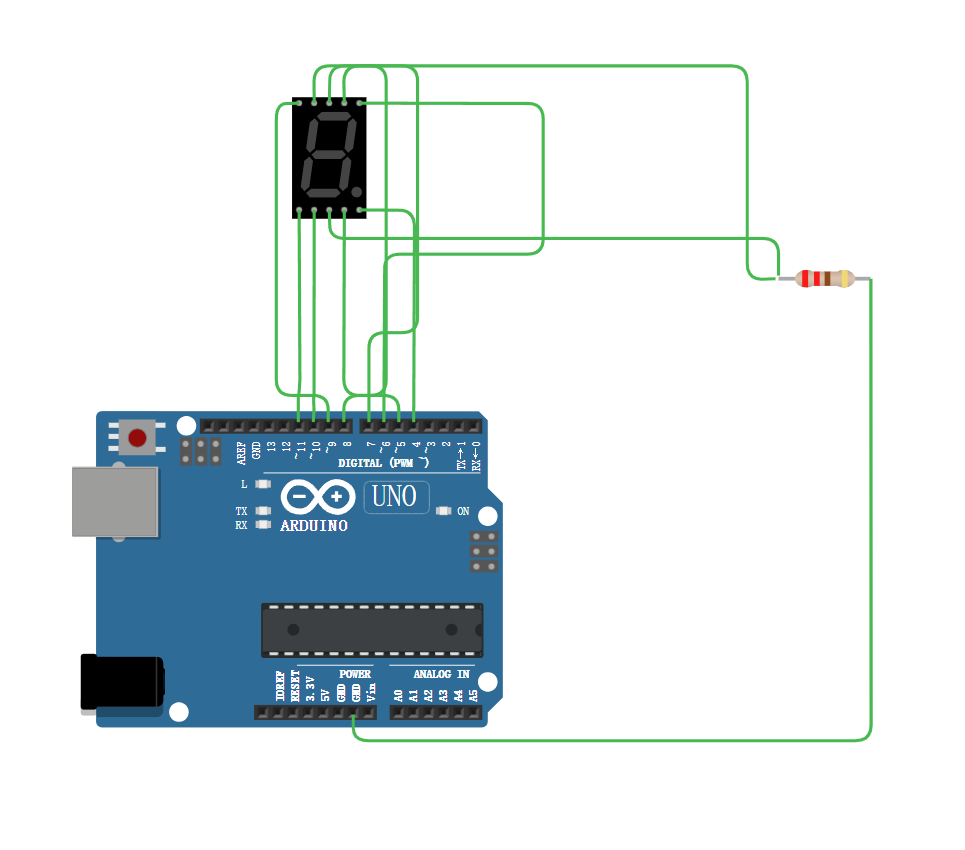

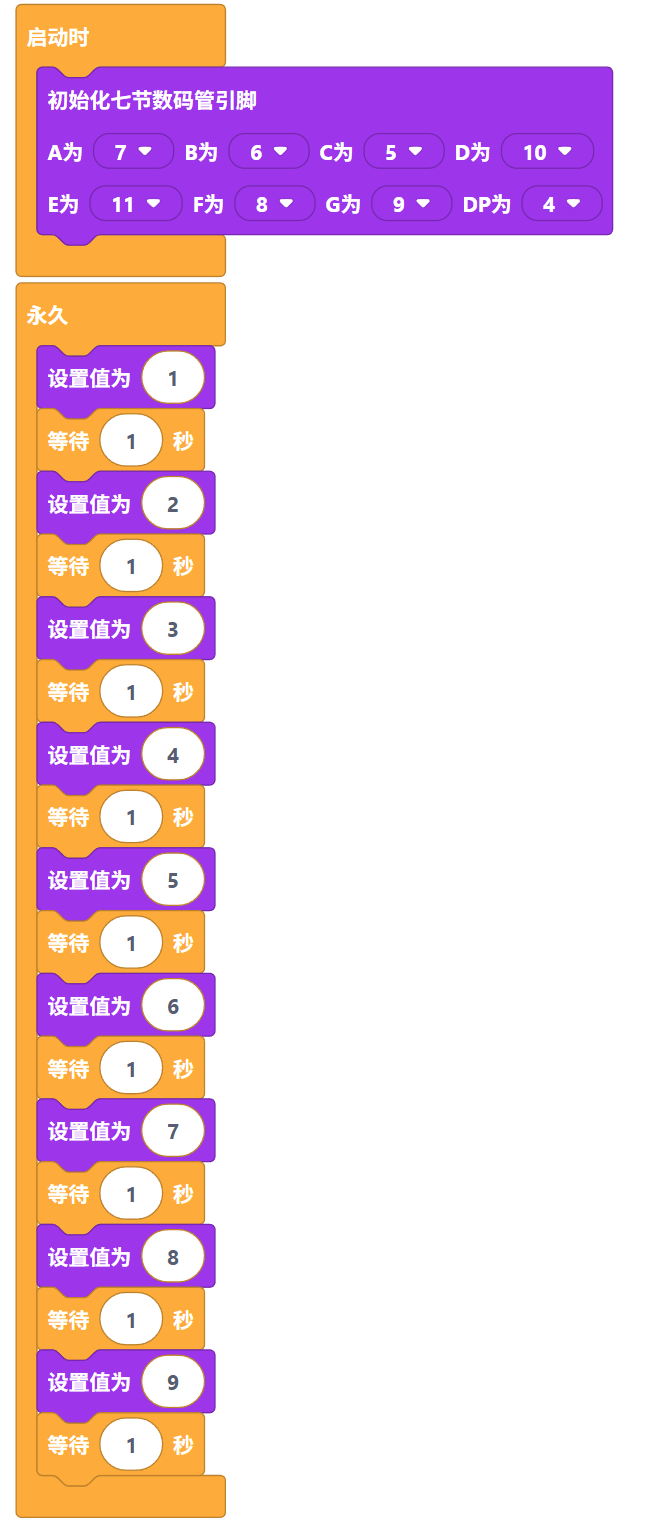

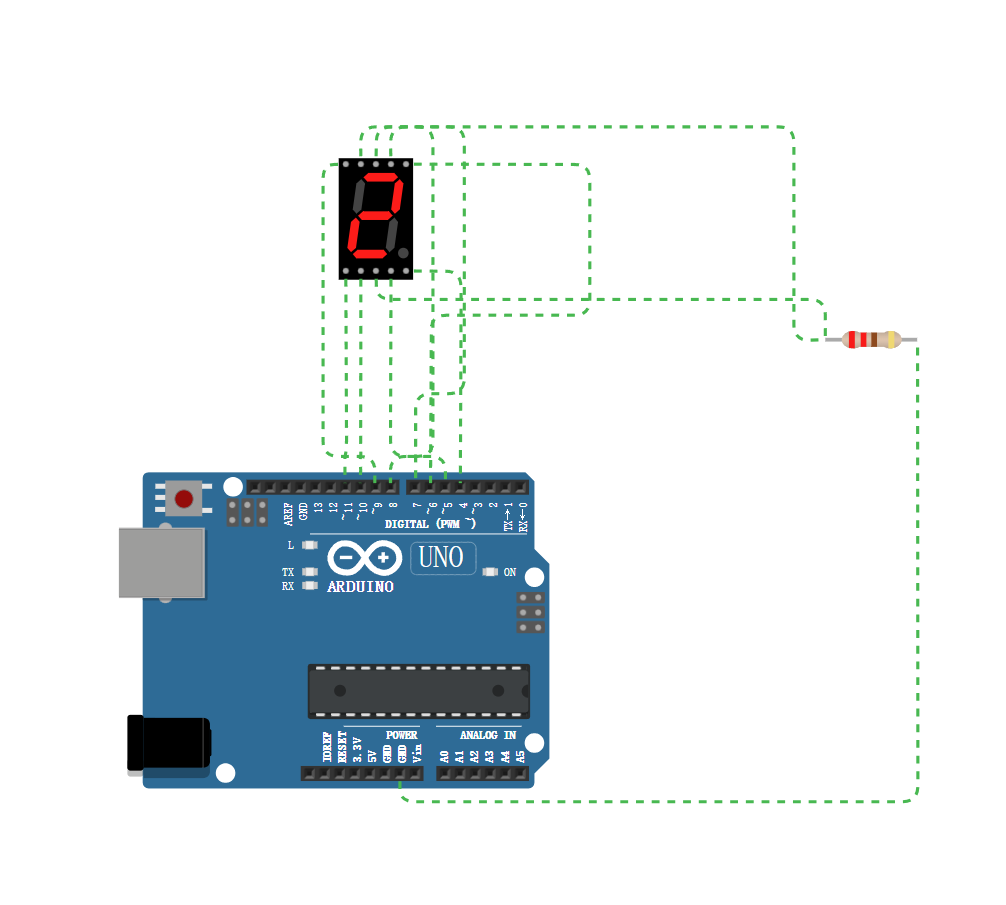

电路连接图可参照相关案例演示

3.1 文本代码

const int a = 7, b = 6, c = 5, d = 10, e = 11, f = 8, g = 9, dp = 4;

void turnOffAllSegments(){
   digitalWrite(a, LOW);
   digitalWrite(b, LOW);
   digitalWrite(c, LOW);
   digitalWrite(d, LOW);
   digitalWrite(e, LOW);
   digitalWrite(f, LOW);
   digitalWrite(g, LOW);
   digitalWrite(dp, LOW);
}

//录入值
void setNumber(String val){
   val.toLowerCase();
   turnOffAllSegments();
   if(val=="1"){
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
   }
   if(val=="2"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(g, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(d, HIGH);
   }
   if(val=="3"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="4"){
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="5"){
       digitalWrite(a, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
   }
   if(val=="6"){
       digitalWrite(a, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="7"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
   }
   if(val=="8"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="9"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="a"){
       digitalWrite(a, HIGH);
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="b"){
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="c"){
       digitalWrite(a, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(d, HIGH);
   }
   if(val=="d"){
       digitalWrite(b, HIGH);
       digitalWrite(c, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="e"){
       digitalWrite(a, HIGH);
       digitalWrite(d, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="f"){
       digitalWrite(a, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
   }
   if(val=="fdp"){
       digitalWrite(a, HIGH);
       digitalWrite(e, HIGH);
       digitalWrite(f, HIGH);
       digitalWrite(g, HIGH);
       digitalWrite(dp, HIGH);
   }
}


void setup() {

  pinMode(a, OUTPUT);
  pinMode(b, OUTPUT);
  pinMode(c, OUTPUT);
  pinMode(d, OUTPUT);
  pinMode(e, OUTPUT);
  pinMode(f, OUTPUT);
  pinMode(g, OUTPUT);
  pinMode(dp, OUTPUT);
  turnOffAllSegments();
}

void loop() {
    setNumber("1");
    delay(1 * 1000);
    setNumber("2");
    delay(1 * 1000);
    setNumber("3");
    delay(1 * 1000);
    setNumber("4");
    delay(1 * 1000);
    setNumber("5");
    delay(1 * 1000);
    setNumber("6");
    delay(1 * 1000);
    setNumber("7");
    delay(1 * 1000);
    setNumber("8");
    delay(1 * 1000);
    setNumber("9");
    delay(1 * 1000);

}
